BP3 - Command - Learn Design Pattern From Simple Things

Command is a behavioral design pattern: 🖤🖤🖤🖤🤍

What is Command?

Command is a technique that object commander is used to encapsulate needed information resource, soldier to execute the task at a later time.

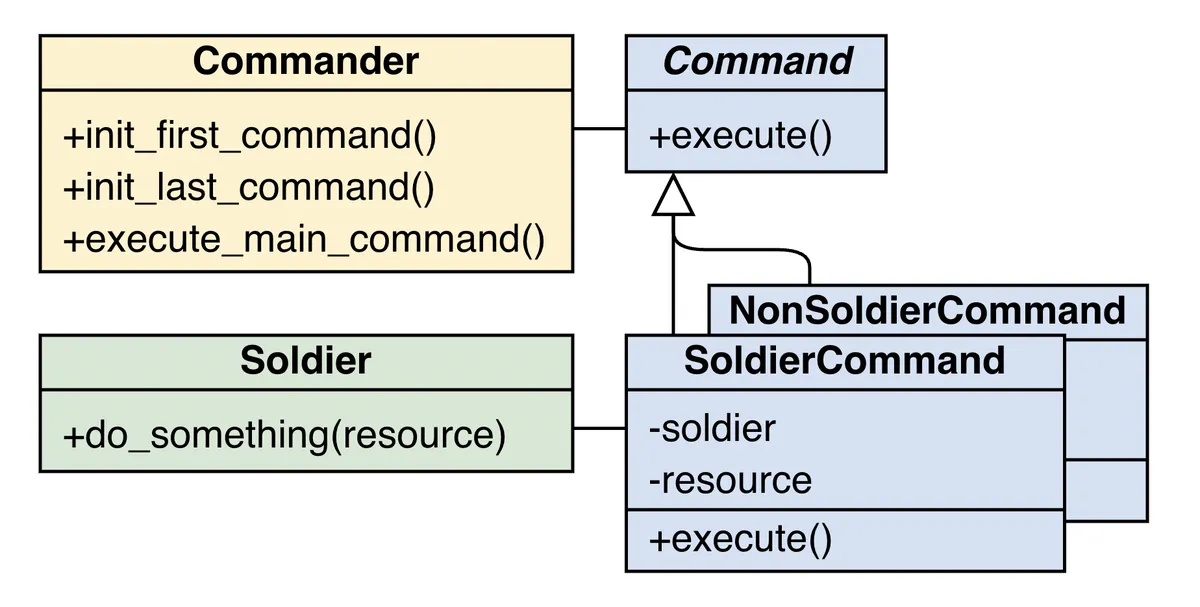

Command diagram

Why use Command?

Its layout is easy to understand and has good extensibility when more logic comes later.

Question: I hate the Command, what are the alternatives?

Answer: Just code as normal and ignore this pattern, everything in Python is an object, so you can store any object and execute a callback easily.

NoCommander

When to use Command?

Question: When do I use Command?

Answer: When you have a lot of tasks, it is necessary to store and plan for them. Then (maybe after a delay) execute them as planned.

Input:

Having resources(Resource for the First Task, Resource for the Main Task, Resource for the Last Task),
Having tasks in order first_task(NonSoldierCommand.execute), main_task , last_task(SoldierCommand.execute):

1
# nothing here

Expected Output:

Resources are appropriately allocated to task, tasks are properly planned first, then it will be executed once the command is activated.

1
2
3
4
5
6
7
Commander: the first task is:
    💣NonSoldierCommand.executing: (Resource for the First Task)
Commander: the main task is:
    🧨Commander.executing: (Resource for the Main Task)
Commander: the last task is:
    💣SoldierCommand.executing: (<class '__main__.Soldier'>, Resource for the Last Task)
        Soldier.do_something with: (Resource for the Last Task)

How to implement Command?

Non-Command implementation:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
def non_soldier_command_execute(payload):
    print(f"    💣NonSoldierCommand.executing: ({payload})")


def soldier_command_execute(soldier, resource):
    print(f"    💣SoldierCommand.executing: ({type(soldier)}, {resource})")
    soldier.do_something(resource)


class Soldier:
    def do_something(self, resource):
        print(f"        Soldier.do_something with: ({resource})")


if __name__ == "__main__":
    # no planning here, just do everything at once
    print("Commander: the first task is:")
    non_soldier_command_execute("Resource for the First Task")

    print("Commander: the main task is:")
    print(f"    🧨Commander.executing: (Resource for the Main Task)")

    print("Commander: the last task is:")
    soldier = Soldier()
    soldier_command_execute(soldier, "Resource for the Last Task")

Command Implementation:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
from abc import ABC, abstractmethod


class Command(ABC):
    @abstractmethod
    def execute(self):
        pass


class NonSoldierCommand(Command):
    def __init__(self, payload):
        self._payload = payload

    def execute(self):
        print(f"    💣NonSoldierCommand.executing: ({self._payload})")


class SoldierCommand(Command):
    def __init__(self, soldier, resource):
        self._soldier = soldier
        self._resource = resource

    def execute(self):
        print(f"    💣SoldierCommand.executing: ({type(self._soldier)}, {self._resource})")
        self._soldier.do_something(self._resource)


class Soldier:
    def do_something(self, resource):
        print(f"        Soldier.do_something with: ({resource})")


class Commander:
    _first_task = None
    _last_task = None

    def init_first_command(self, command):
        self._first_task = command

    def init_last_command(self, command):
        self._last_task = command

    def execute_main_command(self):
        print("Commander: the first task is:")
        if isinstance(self._first_task, Command):
            self._first_task.execute()

        print("Commander: the main task is:")
        print(f"    🧨Commander.executing: (Resource for the Main Task)")

        print("Commander: the last task is:")
        if isinstance(self._last_task, Command):
            self._last_task.execute()


if __name__ == "__main__":
    commander = Commander()

    # commander init: a command encapsulating needed information(resource) to execute the task at a later time.
    non_soldier_command = NonSoldierCommand("Resource for the First Task")
    commander.init_first_command(non_soldier_command)

    # commander init: a command encapsulating needed information(soldier, resource) to execute the task at a later time.
    soldier = Soldier()
    soldier_command = SoldierCommand(soldier, "Resource for the Last Task")
    commander.init_last_command(soldier_command)

    # after planning, this is the later time, time to execute the tasks initiated by the commander
    commander.execute_main_command()

Source Code
